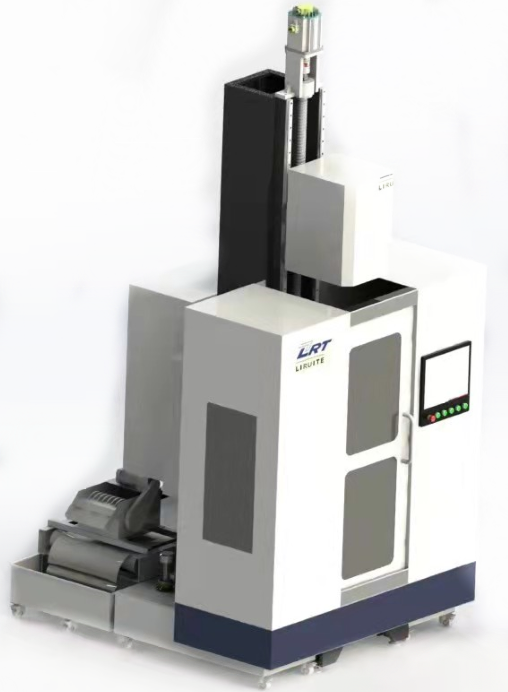

1、 Machine tool parameters

1. Machine tool dimensions: 2670 (width) × three thousand and five hundred × 5550 (high)

2. Workbench specification: double clamping, three stations, servo walking, power 2KW

3. Stroke length: 2550

4. Processing aperture range: 18-450

5. Maximum clamping range of workpiece outer diameter: 30-550

6. Spindle motor: 5.5KW

7. Feed motor: 1000W

8. Lifting reciprocating motor: 5.5KW

9. Reciprocating speed: 0-25 meters per minute, adjustable

10. Sensor range: 0-1000 Nm, accuracy level 0.5

11. Processing accuracy H6, surface roughness Ra ≤ 0.2, roundness 0.01

12. CNC system: a fully digital chemical control system based on Windows platform

13. With automatic detection and repair functions

14. Power requirements: Voltage: 380 volts, 3 phases, 50 hertz, with a permissible voltage fluctuation of 10%

15. Cooling liquid capacity: 500 liters

16. Filtering system: magnetic filtration+secondary copper mesh filtration

17. Spindle speed: 20-200 rpm adjustable

2、 Introduction to Machine Tool Structure

The machine tool mainly consists of a frame, a dual working platform, a spindle box, a reciprocating mechanism, a counterweight balance mechanism, a cooling system, an electronic control system, an external shell, etc.

1. The rack is composed of a welded base, three welded vertical beams, and a "T" top beam.

2. The working platform is equipped with dual clamps and three working positions. The workstation is controlled by a servo motor and a screw.

3. The spindle box is composed of a turbine, worm, box, sensor, spindle motor, feed motor, etc.

4. The reciprocating mechanism consists of a linear guide rail pair, a high-speed transmission ball screw, a worm gear reducer, a reciprocating motor, etc.

5. The counterweight balance mechanism is composed of two sets of sprocket mechanisms, load-bearing roller chains, counterweight blocks, counterweight slide rails, etc.

6. Cooling system: For the convenience of dredging, it is equipped with an independent oil tank, two-stage copper mesh filtration, and a magnetic separator and oil pump are installed on the oil tank.

7. The electric control system consists of an electric control cabinet, touch screen, etc

8. The exterior shell is composed of various sheet metal parts, which are beautiful and tidy.

3、 Tool configuration

1. Cone type honing head: S4-AL100-40, S4-AL100-45

2. Gear and rack feed grinding head. HB-50 (50-76mm), tapered honing head

3. There are two types of grinding rods, ranging from 50 to 76 with a diameter of 42mm and from 40 to 50 with a diameter of 25mm

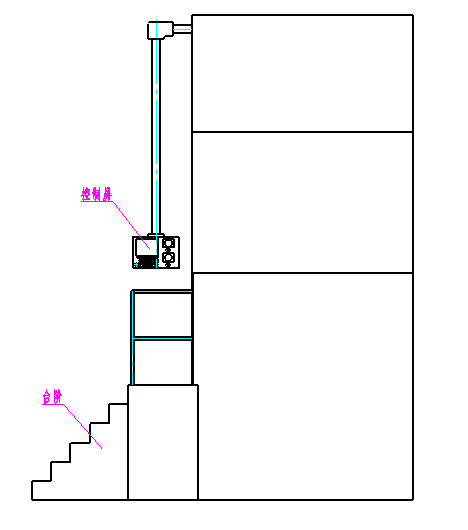

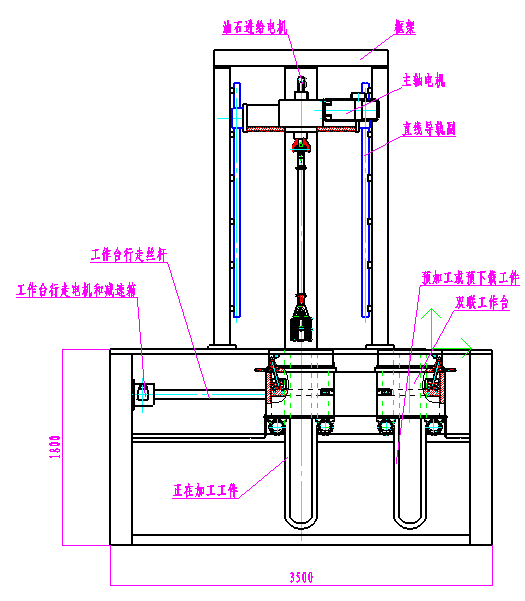

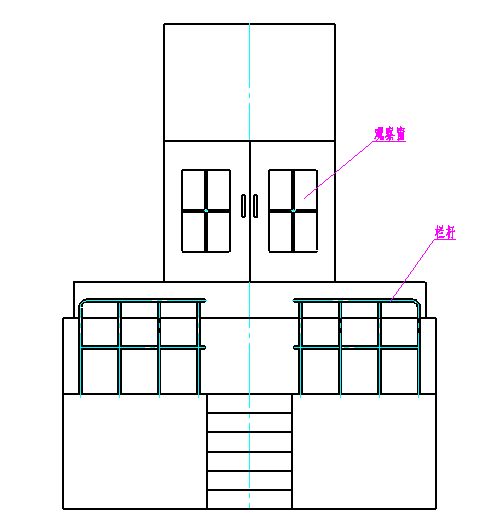

4、 Attached diagram of the plan

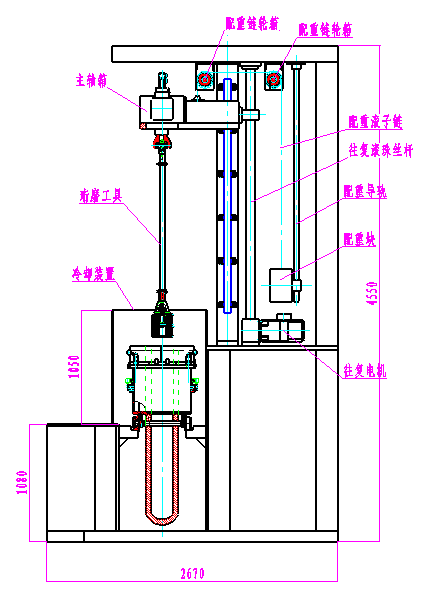

Remove the front view of the casing
