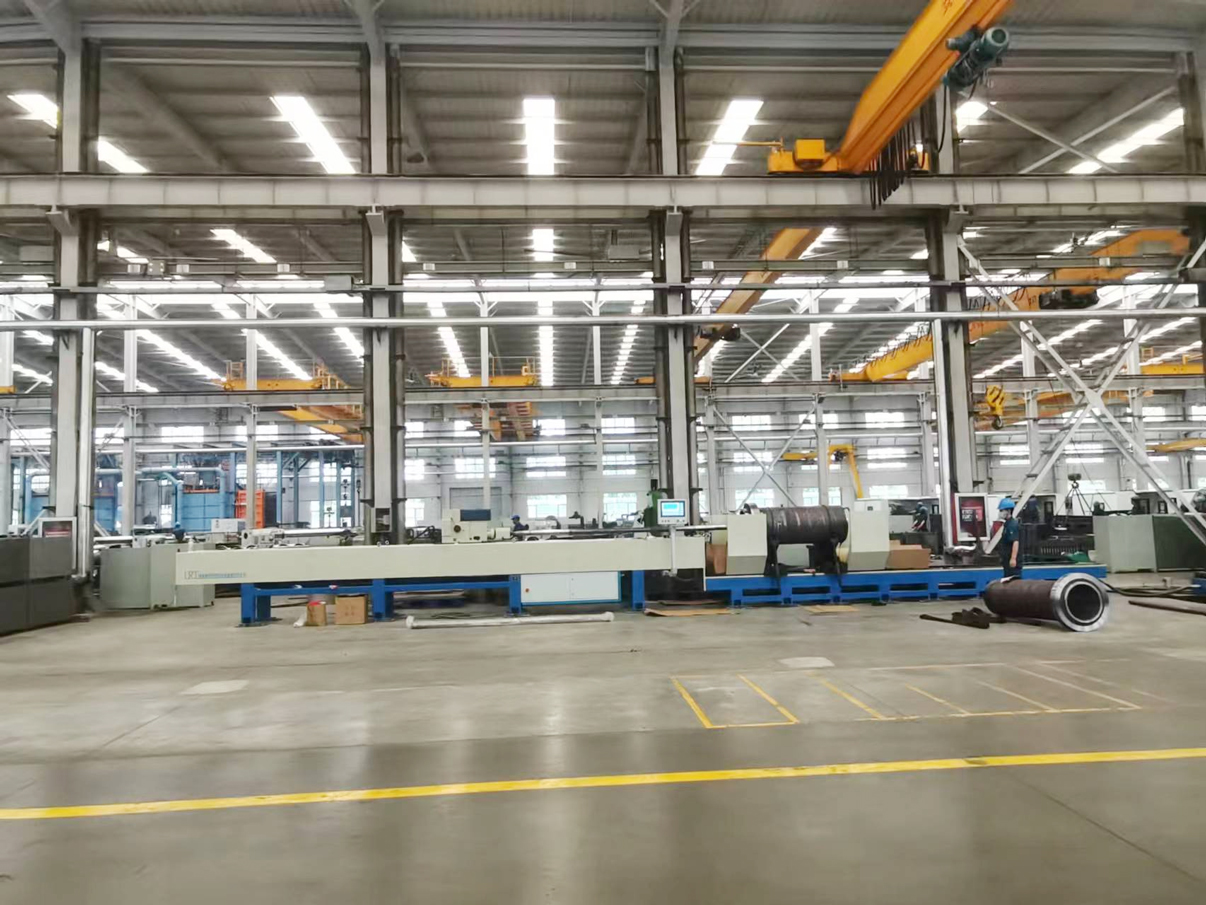

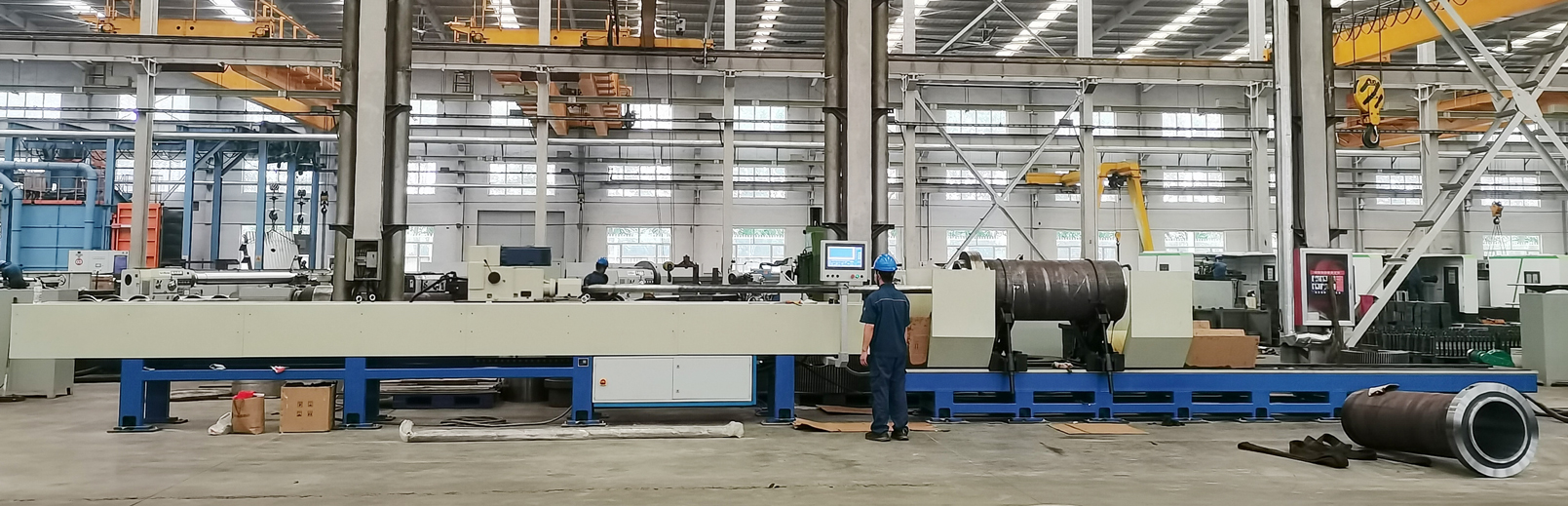

JWH series heavy-duty honing machine_CNC horizontal honing machine

JWH series heavy-duty honing machine

model	STROKE LENGTH(MM)	machine range (MM)	Machine length(MM)	Machine width(MM)	Machine height(MM)	weight(KG)
JWH-1000	1000	Φ97-φ1000	5024	1000	1000	2900
JWH-2000	2000	Φ97-φ1000	7024	1000	1000	3100
JWH-3000	3000	Φ97-φ1000	9024	1000	1000	3800
JWH-5000	5000	Φ97-φ1000	13540	1000	1000	5800
JWH-6000	6000	Φ97-φ1000	15540	1000	1000	6200
JWH-8000	8000	Φ97-φ1000	19540	1000	1000	6800
JWH-10000	10000	Φ97-φ1000	23540	1000	1000	7500
QWH-1000	1000	Φ30-φ450	5024	800	900	2500
QWH-2000	2000	Φ30-φ450	7024	800	900	2900
QWH-3000	3000	Φ30-φ450	9024	800	900	3100
QWH-5000	5000	Φ30-φ450	13540	800	900	5000
QWH-6000	6000	Φ30-φ450	15540	800	900	5500
QWH-8000	8000	Φ30-φ450	19540	800	900	6000
QWH-10000	10000	Φ30-φ450	23540	800	900	7500

Technical Parameter：

Total power of machine tool：15.5KW
machine range：maximum length：10000mm ,maximum pore size：φ1600mm
Minimum aperture：φ97mm
Processing rhythm：average：400-700cm³/h ，maximum：800 cm³/h
dimensional accuracy：H6-H8
roundness：0.02mm-0.04
roughness：Ra0.2-Ra0.4
